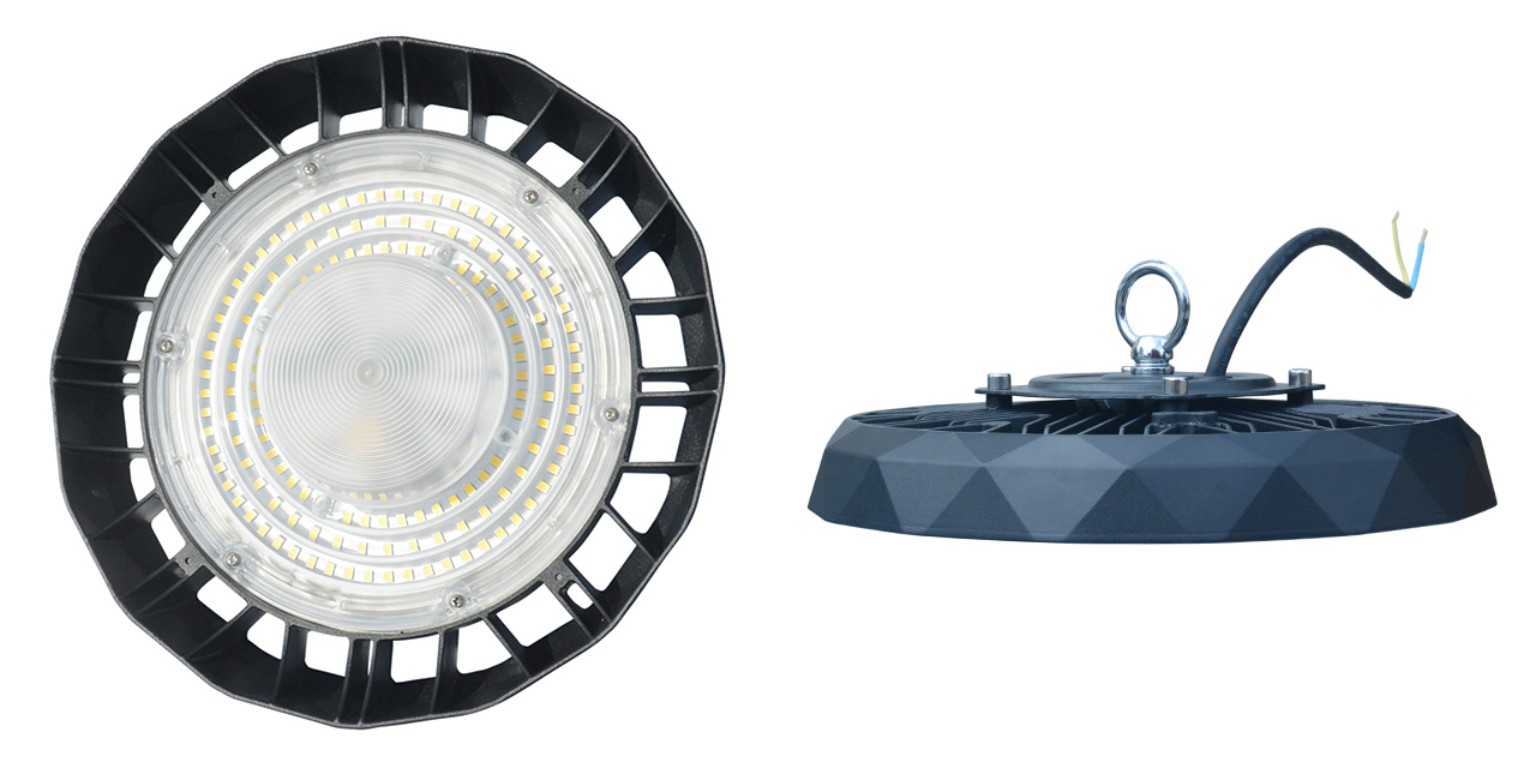

This high bay light is a new product independently developed and designed by us. It adopts diamond face design, which is stylish, beautiful and smooth.
We adopt aluminum die casting ADC12 material for die casting
Lumens: Using high-brightness Sanan 2835mil chip lamp beads, passed CE,ERP. The lumen can reach 100lm/w and 120lm/w for the whole lamp.
Power: 100W, 150W, 200W, 240W
Lens angle: PC material lens is used, it has 60°, 90°, 120°

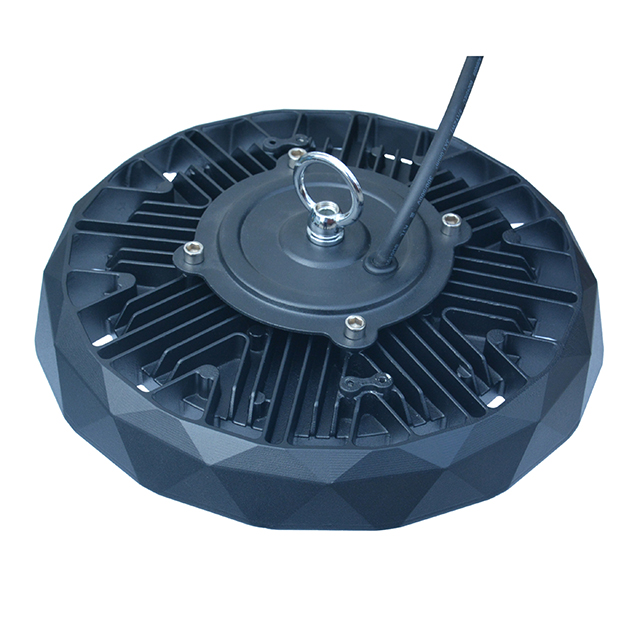

Heat dissipation: The ribs for heat dissipation are very high and thin, the heat dissipation effect is great.
Warranty: 3 years, lifespan is 25,000 hours.
Accessories: The product can be equipped with additional brackets, and the brackets can be conditioned at 180°. The bracket material is iron bracket material.
Lampshade: It can be equipped with PC cover and aluminum cover to meet the practicality of different places

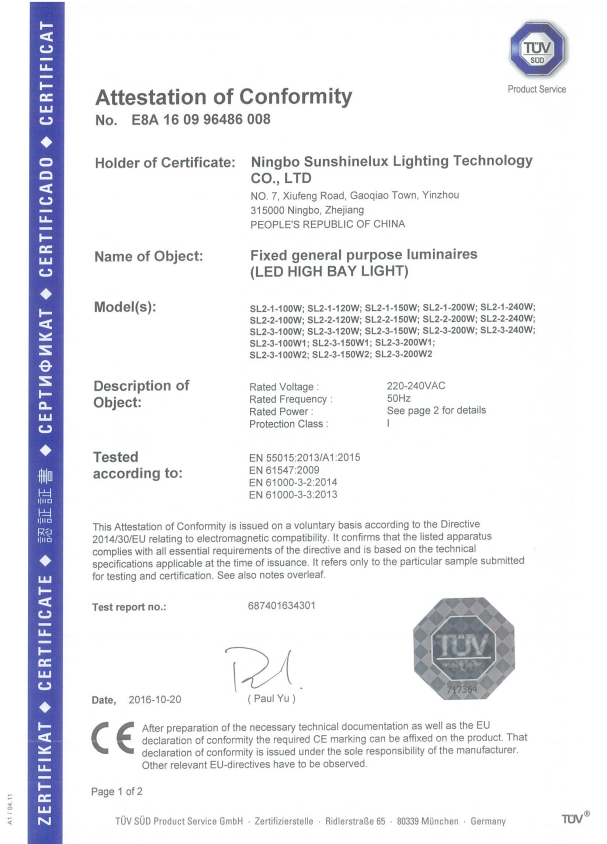

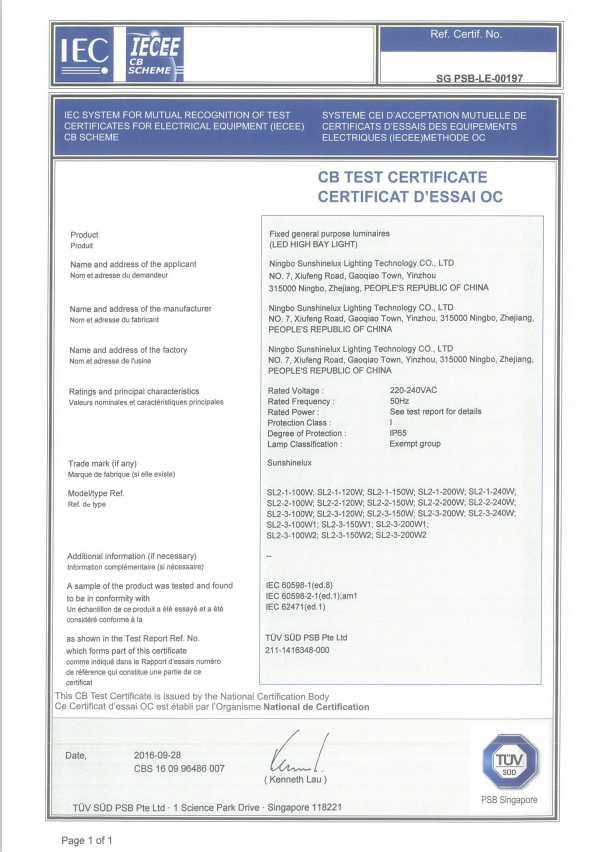

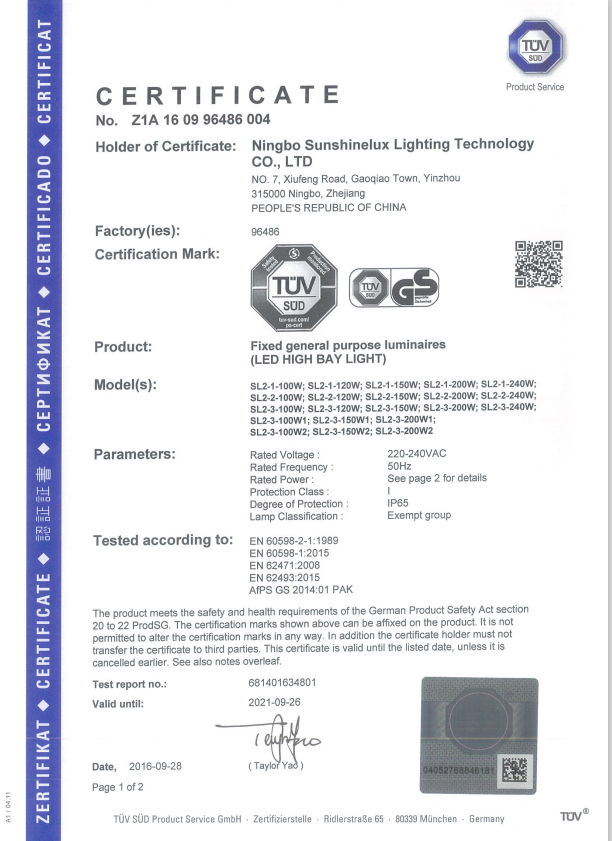

Certification: The product has obtained the Intertek CE CB SAA UKCA certification, and the products have been sold to Europe, South America, the Middle East, Southeast Asia, South Africa and other markets.
| Item NO | HB100C3 | HB150C3 | HB200C3 | HB240C3 |
| Watt(W) | 100 | 150 | 200 | 240 |
| Lamp Luminous Efficiency(LM/W) | 100/120(lm/w) | 100/120(lm/w) | 100/120(lm/w) | 100/120(lm/w) |
| Lamp Luminous Flux(lm) | 10000/12000 | 15000/18000 | 20000/24000 | 24000/28800 |
| Unit Size | 252x88mm | 292x88mm | 332x88mm | 332x88mm |
| Input Voltage(V) | AC220-240V 50/60Hz | |||
| Color Temperature(CCT) | 3000-4000-6000K | |||
| IES | IES available | |||
| Beam Angle(°) | 60°-90°-120° | |||
| Work Temperature(°) | （-30，45） | |||
| Working Lifetime(H) | 50000Hours | |||
| Lamp Body Material | Aluminum Die-casting | |||
| Lens | PC Lens | |||
| SPD | 2KV or 6KV available | |||
| IK | IK08 | |||
| IP Rating | IP65 | |||
| Driver Brand | DOB Linear IC Driver | |||
| LED Chip | Chinese Sanan 2835mil | |||
| CRI(Ra>) | 70 | |||
| Certification | Intertek CE CB SAA UKCA | |||
| Place of Original | Ningbo,China | |||
| Warranty(Years) | 3 Years | |||
| PF(>) | 0.9 | |||
| Hook | With Hook | |||
| Bracket | Bracket Optional | |||
| Dimmable | Without Dimmable | |||
| LampShade | With PC or aluminium Lampshade | |||
New Design:
New diamond face design, which is stylish, beautiful and smooth.
High Heat Disspation:
The ribs for heat dissipation are very high and thin, the heat dissipation effect is great.
Lens:
The lens we use is PC lens, 60°, 90°, 120° are available.
