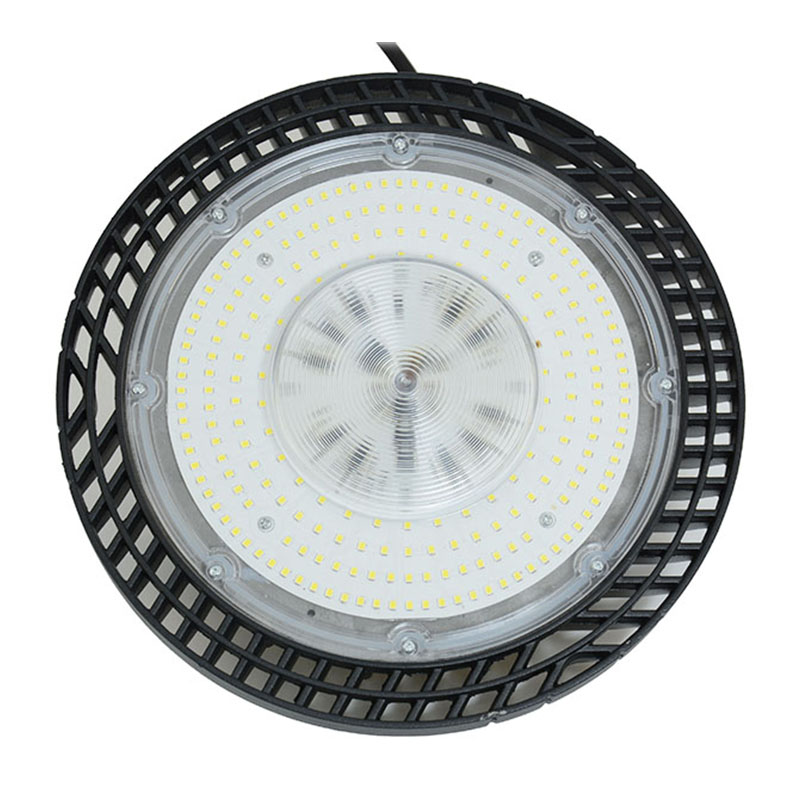

High bay solution for industrial and commercial locations, like warehouses, gyms, barns, and supermarkets. It offers broad light distribution for these large areas, where have a common point, the ceiling is quite high.
The slim design and looks nice .The lamps pass CE CB SAA ROHS and TUV New Erp . That it can sell to most of the market .Like Europe and Middle-east and South-Amrerica.

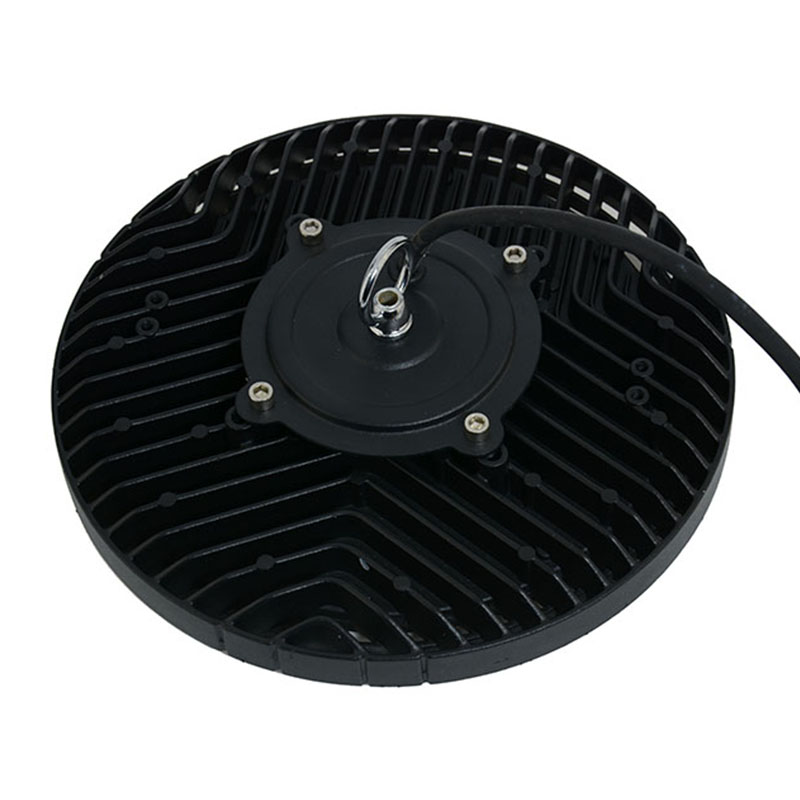

Driver on board program replaces the driver installed on the upside. No fear of “hot gas upward”. All we need to promise is the temperature rise of key components is within the design range. After the temperature rise test of the key components and the whole lights in the 55-degree high-temperature room for one year, we can guarantee superior heat dissipation and durability. Of course, the material of ultra-thin die-cast aluminum is also the key to ensuring heat dissipation.
IP65 waterproof rating of high bay can be used for all indoor or outdoor conditions, perfectly use in any dry, humid, wet locations. Such as factories, warehouses, shops, workshops, manufacturing plants, garages, stadiums, supermarkets exhibition halls, gymnasiums, storage areas, grocery stores, and other large industrial and commercial spaces.
Item NO | SL2-3-100W-DOB | SL2-3-150W-DOB | SL2-3-200W-DOB |
Watt(W) | 100 | 150 | 200 |
Lamp Luminous Efficiency(LM/W) | 100 | 100 | 100 |
Lamp Luminous Flux(lm) | 10000 | 15000 | 20000 |
Body Size(mm) | D247X30.5mm | D257X36mm | D269X41.5mm |
Input Voltage(V) | AC220-240V | ||
Color Temperature(CCT) | 4000K-6500K | ||
IES | IES available | ||
Beam Angle(°) | 90° 120° | ||
Lens Material | 120° or 90° PC Lens | ||

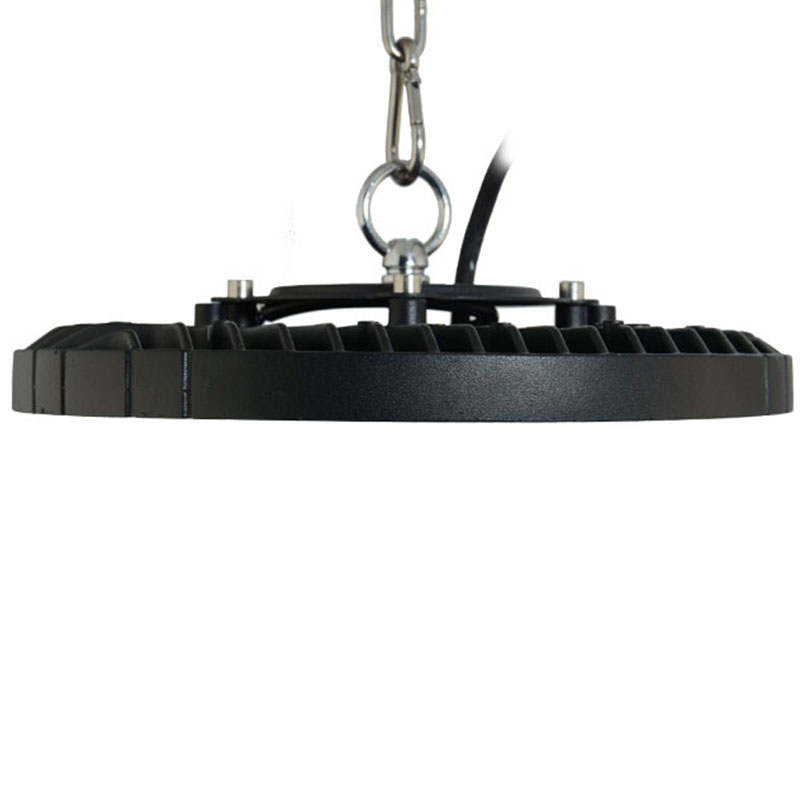

Bracket | with 1pcs hook or with a bracket | ||
reflector | Without Reflector | ||
Work Temperature(°) | (-20°,45°) | ||
Working Lifetime(H) | 25000Hours | ||
Lamp Body Material | Die-casting Aluminum | ||
IP Rating | IP65 | ||
Driver Brand | DOB Linear IC Driver | ||
LED Chip | Chinese Sanan 2835mil | ||
CRI(Ra>) | 70/80 | ||

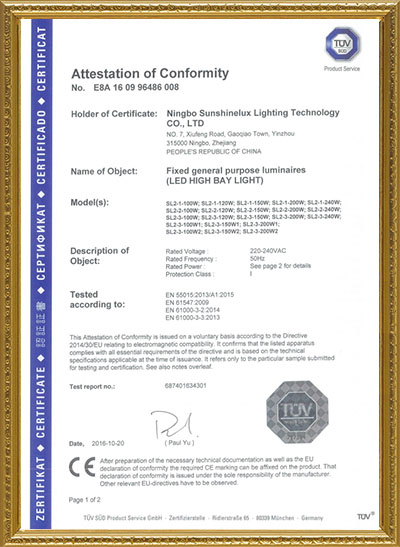

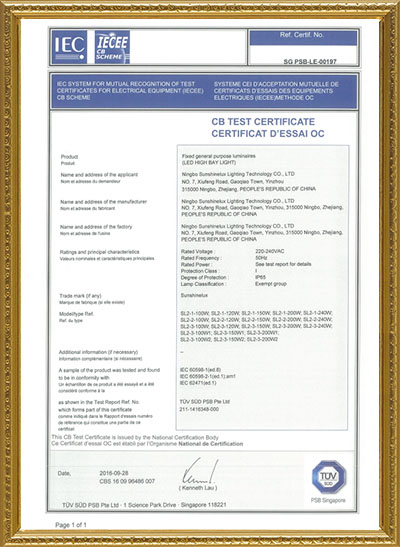

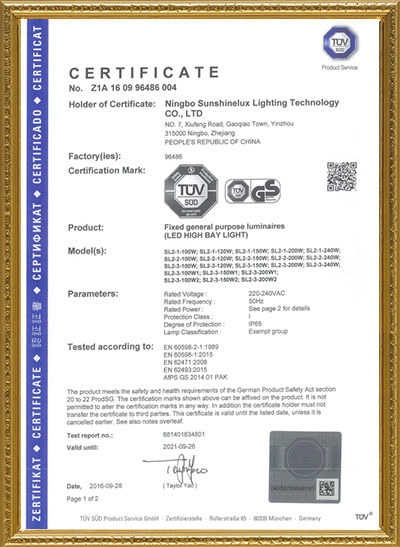

Certification | TUV GS CB CE ROHS SAA | ||
Place of Original | Ningbo,China | ||
Warranty(Years) | 2Years | ||
PF(>) | 0.9 |
The special lens with an 90 and 120 degree beam angle, long irradiation distance, high light intensity, provides clear, uniform lighting of what’s below it with little glare.
