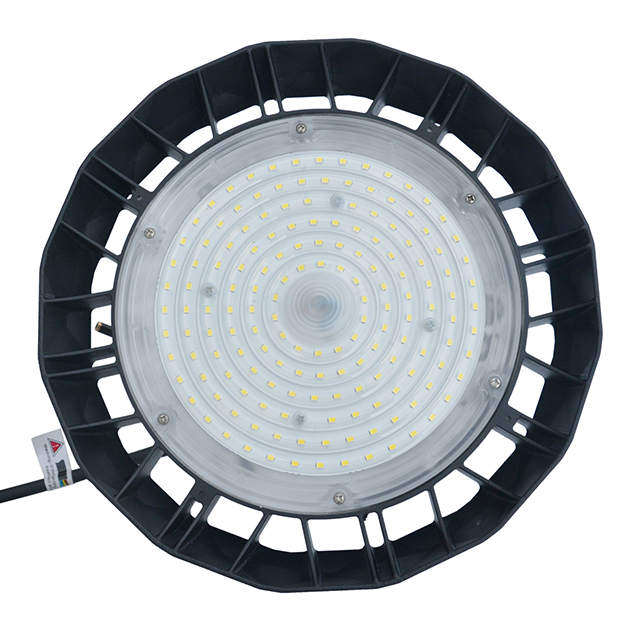

This high bay light is a new product independently developed and designed by us. It adopts diamond face design, which is stylish, beautiful and smooth.
We adopt aluminum die casting ADC12 material for die casting
Lumens: Using high-brightness Sanan 2835mil chip lamp beads, we can achieve 130lm/w, 150lm/w, 170lm/w, 190lm/w, and even 210lm/w for the whole lamp
Drivers: Conventionally, we use Lifud, Sosen, Philips and other brand drivers with 5 years
Power adjustment: If we use the Lifud brand drive, we can adjust the power, it is a dial adjustment, and the power selection has 100%-80%-60% power selection
Color temperature adjustment: Our model can be made to adjust the color temperature, which is a dial adjustment. The color temperature options are 3000K-4000K-5000K, and can be made into 4000K-5000K-6000K
Power: 100W, 150W, 200W, 240W
Lens angle: PC material lens is used, it has 60°, 90°, 120°

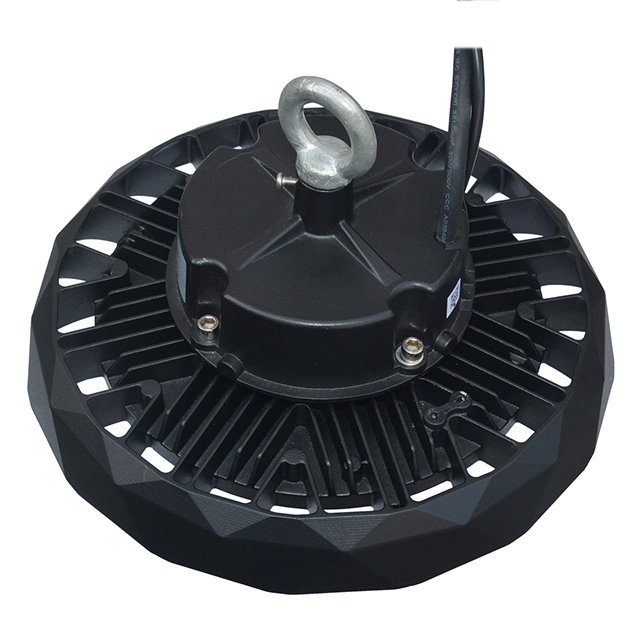

Heat dissipation: The ribs for heat dissipation are very high and thin, the heat dissipation effect is great.
Warranty: 5 years, lifespan is 50,000 hours.
Accessories: The product can be equipped with additional brackets, and the brackets can be conditioned at 180°. The bracket material is iron bracket material.
Lampshade: It can be equipped with PC cover and aluminum cover to meet the practicality of different places
Certification: The product has obtained the Intertek CE CB SAA UKCA certification, and the products have been sold to Europe, South America, the Middle East, Southeast Asia, South Africa and other markets.
| Item NO | HB100C1 | HB150C1 | HB200C1 | HB240C1 |
| Watt(W) | 100 | 150 | 200 | 240 |
| Lamp Luminous Efficiency(LM/W) | 130/150/170/190(lm/w) | 130/150/170/190(lm/w) | 130/150/170/190(lm/w) | 130/150/170/190(lm/w) |
| Lamp Luminous Flux(lm) | 13000/15000/17000/19000 | 19500/22500/25500/28500 | 26000/30000/34000/38000 | 31200/36000/40800/45600 |
| Unit Size | 252x140mm | 292x143mm | 332x143mm | 332x143mm |
| Input Voltage(V) | AC100-277V 50/60Hz | |||
| Color Temperature(CCT) | 3000-4000-5000-6000K | |||
| IES | IES available | |||
| Beam Angle(°) | 60°-90°-120° | |||
| Work Temperature(°) | （-30，45） | |||
| Working Lifetime(H) | 50000Hours | |||
| Lamp Body Material | Aluminum Die-casting | |||
| Power Tunable | can be with or without | |||
| 3CCT | can be with or without | |||
| Sensor | Sensor function Optional ,only need low cost | |||
| Remote control | Remote control Optional ,it's additional cost | |||
| Lens | PC Lens | |||
| SPD | 6KV available | |||
| IK | IK08 | |||
| IP Rating | IP65 | |||
| Driver Brand | Sosen or Lifud (Philips,Zhihe driver Optional) | |||
| LED Chip | Chinese Sanan 2835mil or other brand LED Chip | |||
| CRI(Ra>) | 70 or 80 | |||
| Certification | Intertek CE CB SAA UKCA | |||
| Place of Original | Ningbo,China | |||
| Warranty(Years) | 5 Years | |||
| PF(>) | 0.95 | |||
| Hook | With Hook | |||
| Bracket | Bracket Optional | |||
| Dimmable | 0-10V Dimmable Optional or not | |||
| LampShade | With PC or aluminium Lampshade | |||
CCT:
For this type of highbay,we can make 3000-6500K.
Voltage:
The voltage of this lamp we can make 100-277v.
