Bright: 100lm/w-high efficacy. (115-120lm/w is available ).The LED HighBay with superior quality for higher illumination, providing you with sufficient light in dim night, creating a safe environment for supermarkets or warehouses.
Lifespan: 30,000 hours lifespan and 2-year warranty.
Waterproof: IP65 waterproof rating. It can be installed in various weather conditions all year round, and can also be placed outdoors. The durable aluminum shell is used to quickly dissipate heat to keep it cool, and it can withstand outdoor rain and storms.

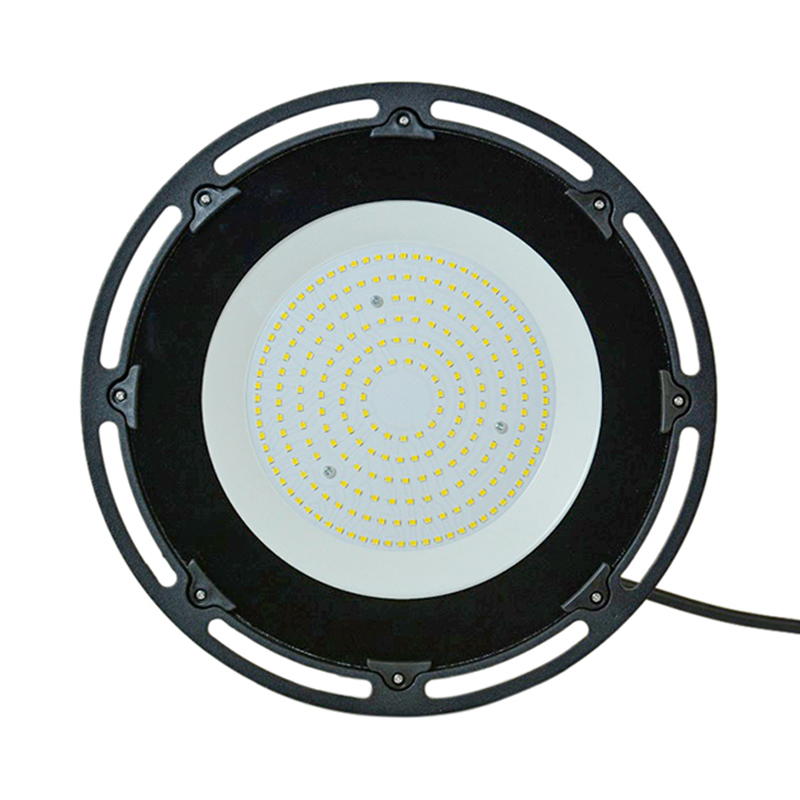

Lamp beads: adopt SMD2835, the light-emitting angle is 120°, 3000K /4000K /6500K.
Weather: Being used from-40℃-50℃.

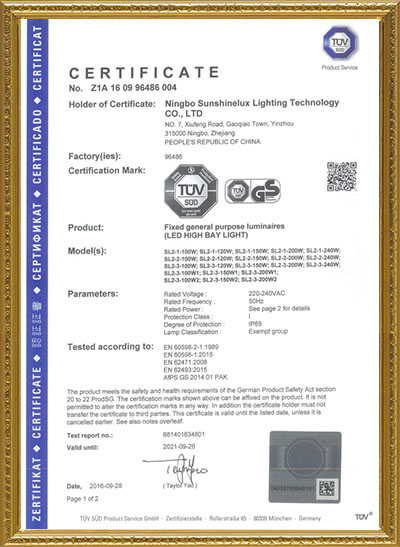

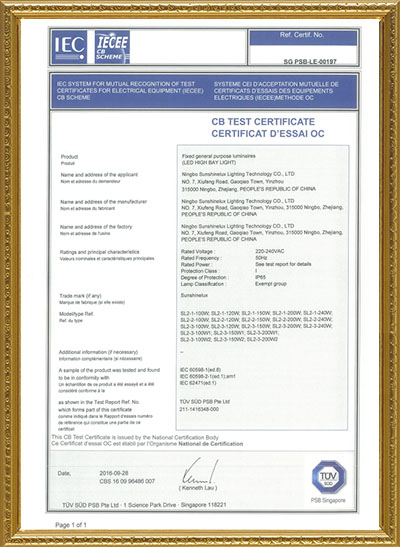

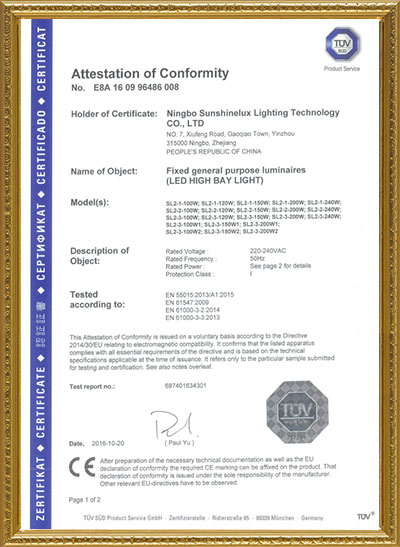

Certificates: CE, ROHS are available to cater to different markets. If other certificates are needed, please feel free to contact us.
Item NO | SL2-3-100W-DOB | SL2-3-150W-DOB | SL2-3-200W-DOB |
Watt(W) | 100 | 150 | 200 |
Lamp Luminous Efficiency(LM/W) | 100 | 100 | 100 |
Lamp Luminous Flux(lm) | 10000 | 15000 | 20000 |
Body Size(mm) | D265mm | D295mm | D330mm |
Input Voltage(V) | AC220-240V | ||
Color Temperature(CCT) | 4000K-6500K | ||
IES | IES available | ||
Beam Angle(°) | 90° 120° | ||
Lens Material | 120° tempered glass or 90° PC Lens | ||
Bracket | with 1pcs hook or with a bracket | ||
reflector | Without Reflector | ||
Work Temperature(°) | (-20°，45°) | ||
Working Lifetime(H) | 25000Hours | ||
Lamp Body Material | Die-casting Aluminum | ||
IP Rating | IP65 | ||
Driver Brand | DOB Linear IC Driver | ||
LED Chip | Chinese Sanan 2835mil | ||
CRI(Ra>) | 70/80 | ||
Certification | TUV GS CB CE ROHS SAA | ||
Place of Original | Ningbo,China | ||
Warranty(Years) | 2Years | ||
PF(>) | 0.9 | ||

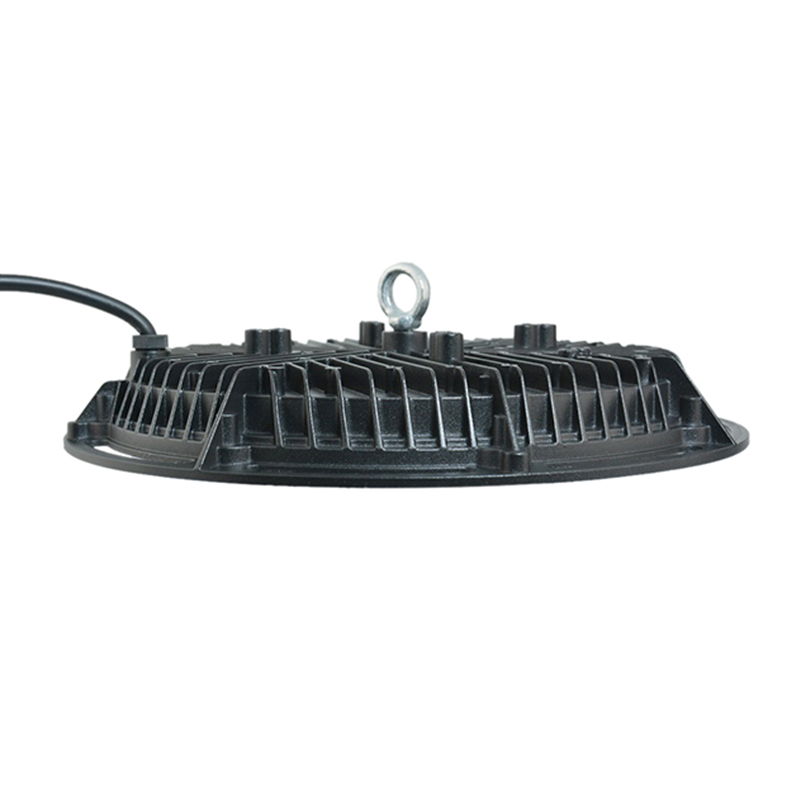

Appearance: The new "UFO style" of LED HighBay is novel, attractive, and smooth, so they can reduce volume and decrease transport cost, and it will have more price strength.
Driver on the board
