This is our latest stadium light. At present, the demand for stadium lights is very large. Customers also like to buy these high-end lights for stadium lighting. About our lights, there are the following features:
Shell design: This design is stylish and rectangular. The body material is made of aluminum die-cast ADC12, which has a good heat dissipation effect. The weight of the aluminum material of a single module is 4380 grams, and an additional hood can be used. This is an optional accessory .
Lens angle: This is composed of 50x50mm small lenses. Conventionally, we use 36 16-in-1 3030mil LED small lenses, or 36 6-in-1 5050mil LED small lenses. The lens is made of PC imported from Japan. High light transmittance, up to 92%, no yellowing, anti-UV. The angle of the lens has many angles. The angles of the 16-in-1 lens are: 15°, 25°, 40°, polarized 45°, 60°, 90°, 40x100°, 90x120°, 100x160°. The angles of the 6-in-1 lens are: 30°, polarized 45°, 60°, 90°, TYPE2-M, TYPE3-M, TYPE4-S, etc. The angles can be customized according to customer needs.
Drive: Conventionally, we use Sosen's VH series, which is composed of two 240W drivers. The total power is about 480-500W. The voltage is 90-305V, the warranty is 5 years, and the SPD is 6KV or 10KV. Of course, customers can also choose other brands, such as Meanwel, Philips, Infineum and other brands. In addition, the driver we choose is with dimming. Drive certification has all global certifications such as CE CB SAA UL.
LED lamp beads: LED We use the highest quality Lumileds brand 3030mil and 5050mil lamp beads on the market. High luminous efficiency, conventional can reach 130-150lm/W. This RA>70, SDCM<6, light decay is small, conventional color temperature we can choose 3000K, 4000K, 5000K, 5700K.
If you are interested in our stadium lights, please send us an inquiry and we will reply you as soon as possible. Please believe that our professional production and the quickest reply will definitely allow us to achieve a win-win situation for each other.
Sunshinelux as a professional led stadium lighting manufacturers, we are the top high mast lighting manufacturers, high power led flood light factory, led factory lights,china led work light supplier,china 100w led high bay light factory.please believe that we will provide the best quality, best service, best price, please contact us.
| Item NO | SL1-8-500W | SL1-8-1000W | SL1-8-1500W | SL1-8-2000W |
| Watt(W) | 500 | 1000 | 1500 | 2000 |
| Lamp Luminour Efficiency(LM/W) | 130 | 130 | 130 | 130 |
| Lamp Luminour Flux(lm) | 65000 | 130000 | 195000 | 260000 |
| Body Size（mm） | 590x285x200 | 595x590x465 | 595x900x470 | 595x200x470 |
| Input Voltage(V) | AC90-305V | |||
| Color Temerature(CCT) | 3000-4000-5000K-5700K | |||
| IES | IES available | |||
| Beam Angle(°) | 15°,30°,45°,60°,90°,40X100° | |||
| Work Temerature(°) | （-30，45） | |||
| Working Lifetime(H) | 50000Hours | |||
| Lamp Body Material | Aluminium Die-casting | |||
| Glass | PC Lens | |||
| Respirator | With or without respirator | |||
| IK | IK08 | |||
| IP Rating | IP65 | |||
| Driver Brand | Sosen,Meanwell,Philips driver are available | |||
| LED Chip | Lumileds 3030/Lumileds 5050 | |||
| CRI(Ra>) | 70 | |||
| Certification | Intertek CB CE SAA ROHS and TUV NEW ERP | |||
| Warranty(Years) | 5 Years | |||
| PF(>) | 0.95 | |||
Shell design
This design is stylish and rectangular. The body material is made of aluminum die-cast ADC12,
which has a good heat dissipation effect.

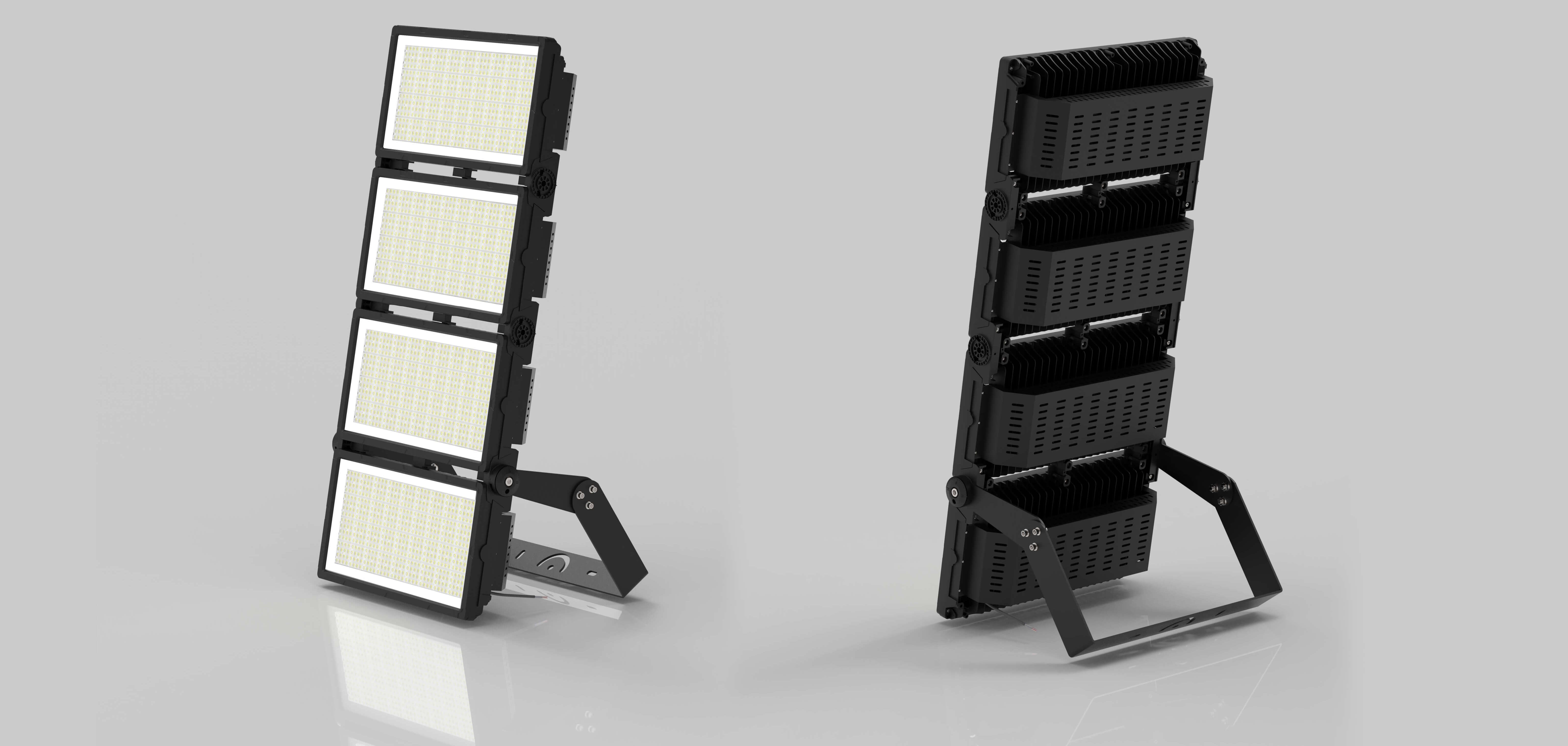

Power
Each module of our lamp is 500W, we can put together modules to form 1000W, 1500W, 2000W, etc.
The unit price of the product is also accumulated sequentially.
