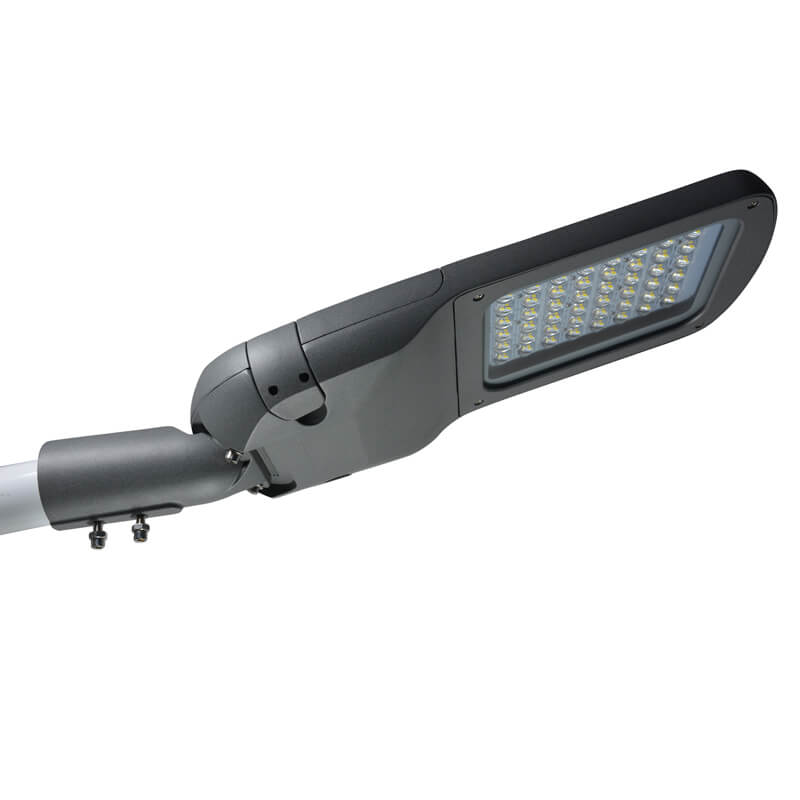

Sunshinelux's WS series street lights are mainly installed on main roads and can save energy by 85%. This street lamp has the advantages of high lumen, smooth surface, good heat dissipation, long life and easy repair.
IP Rating: This light is very waterproof and can reach IP65 waterproof rating.
IK grade: IK08, using high-quality die-casting aluminum and PC lens, can be widely used in outdoor and very complex climate environment.
LED light source: WS series street lights, using Philips Lumileds 3030LED chips and 5050 chips, can reach 130lm/W and 150lm/W, with perfect lighting to ensure road safety.
Lifespan: The product has a lifespan of 50,000 hours and 5-year warranty. It adopts high-quality Philips, Meanwell, Sosen, and Inventronics drivers.
Lens: High-quality PC lens is used, and the material is PC brand imported from Japan. We can also develop according to your requirements.
Surge protection: The product comes with a 10KV surge protector.
| Item NO | SL2-3-50WS | SL2-3-60WS | SL2-3-80WS | SL2-3-100WS |
| Watt(W) | 50 | 60 | 80 | 100 |
| Lamp Luminous Efficiency(LM/W) | 120 | 120 | 120 | 120 |
| Lamp Luminous Flux(lm) | 6000 | 7200 | 9600 | 12000 |
| Item NO | SL2-3-120WS | SL2-3-150WS | SL2-3-200WS | |
| Watt(W) | 120 | 150 | 200 | |
| Lamp Luminous Efficiency(LM/W) | 120 | 120 | 120 | |
| Lamp Luminous Flux(lm) | 14400 | 18000 | 24000 | |
| Input Voltage(V) | AC100-277V | |||
| Color Temperature(CCT) | 4000-5000-5700K | |||
| IES | IES available | |||
| Beam Angle(°) | TYPE II,TYPE III,TYPE IV, | |||
| Work Temperature(°) | (-30，45) | |||
| Working Lifetime(H) | 50000Hours | |||
| Lamp Body Material | Aluminum Die-casting | |||
| Glass | Clear Tempered glass | |||
| IK | IK08 | |||
| SPD | 10KV | |||
| IP Rating | IP65 | |||
| Driver Brand | Philips/Meanwell/Sose | |||
| LED Chip | Philips 303 | |||
| CRI(Ra>) | 70 | |||
| Certification | TUV CB CE SA | |||
Warranty(Years) | 5years | |||
| Color | Grey | |||
PF(>) | 0.9 | |||

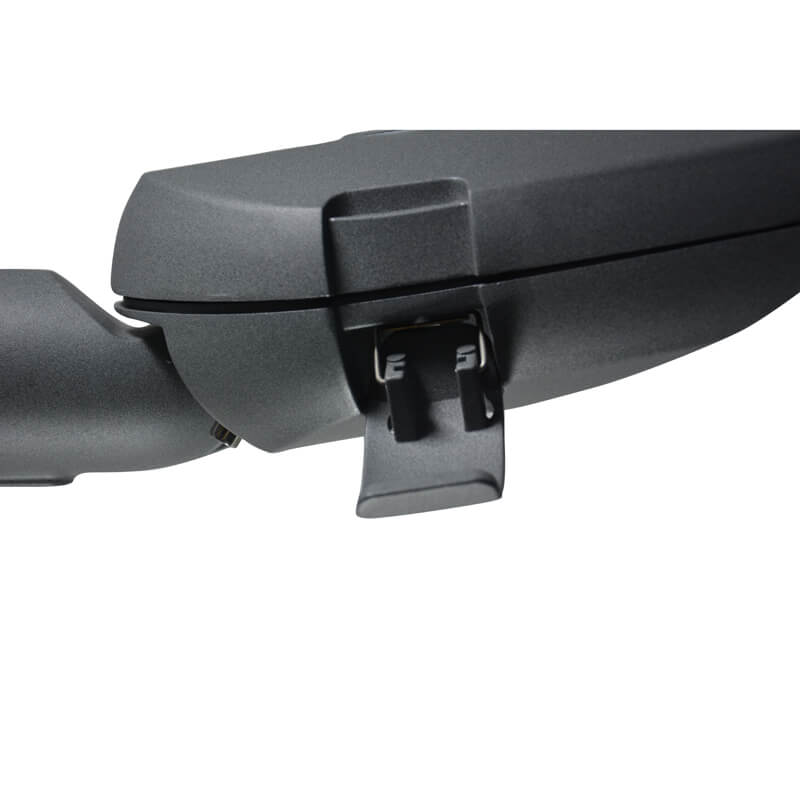

Without a screwdriver, you can quickly open the button and open the back cover with your hands to maintain the product.
The street lamp bracket arm can be adjusted, and the angle can be adjusted by 15°.

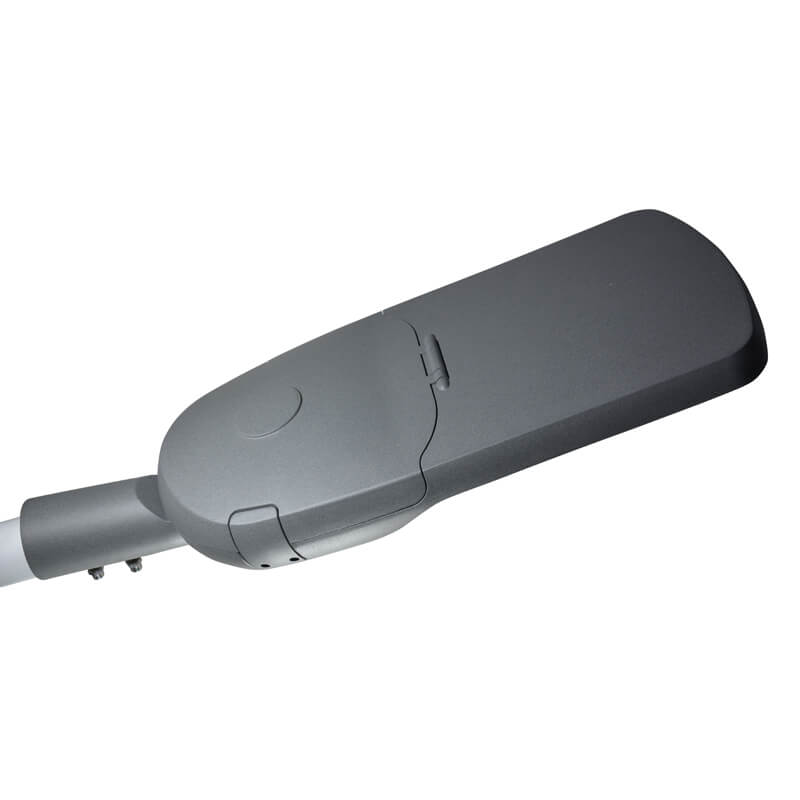

The back of the case is smooth, will not cover dust, will not affect heat dissipation and prolong product life.
